Metrici · LED Display
The Right Info.
The Right Help.
In Real Time.
Metrici LED displays connect directly to your Metrici system and show any data you need — free parking spaces, vehicle speed, plate numbers, directions, weights — updated live, outdoors, 24/7.
Big LED Display
Big variant
RGBARR model
Product Range
Two Standard Models. Every Need Covered.
A compact panel for parking rows and a larger display for parking total, roads, hubs, industrial sites.

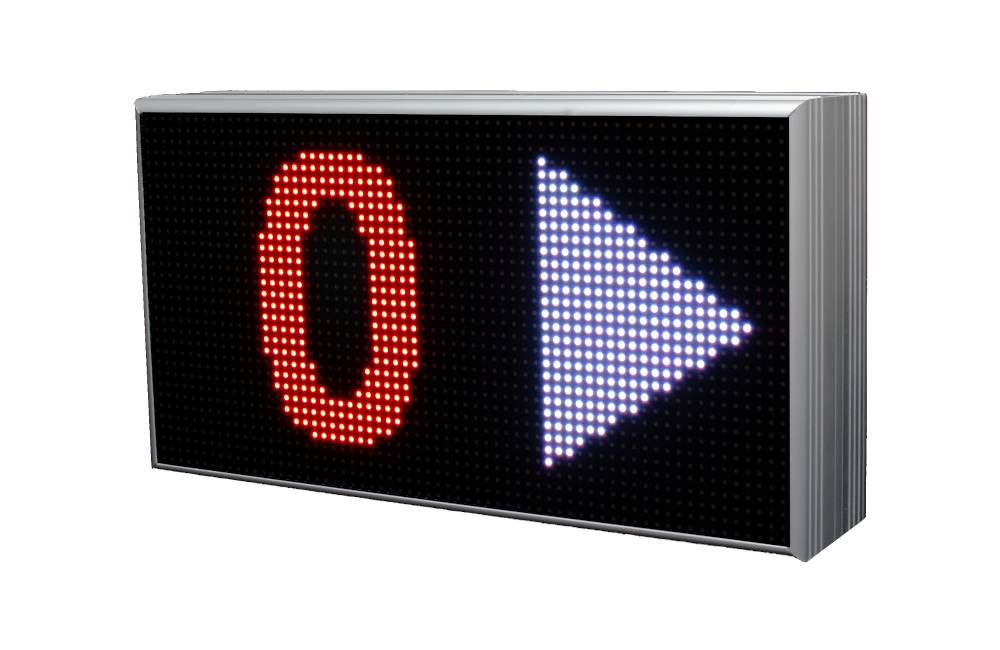

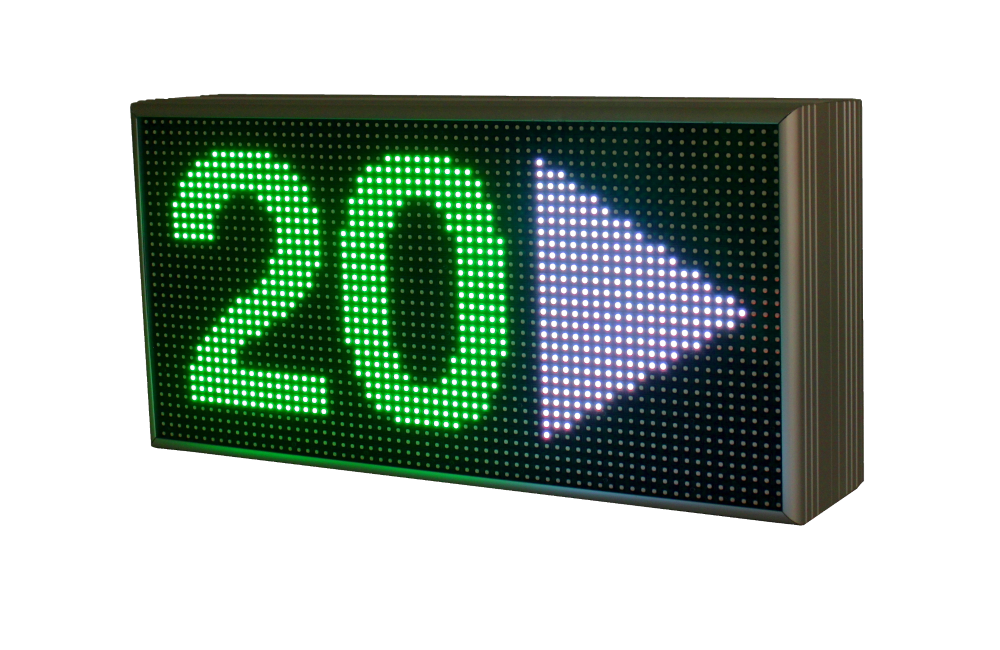

Compact — RGBARR
Small LED Panel
A single-panel LED display around 32 cm long (64 pixels). Can be chained up to 10+ panels per row. Ideal for parking row signage — shows free/busy count and a configurable direction arrow.
Size
~32 × 16 cm
Resolution
64 × 32 px
Characters
3 large / row
Panels
Up to 10+ / row
Colour
Full RGB
Network
WiFi

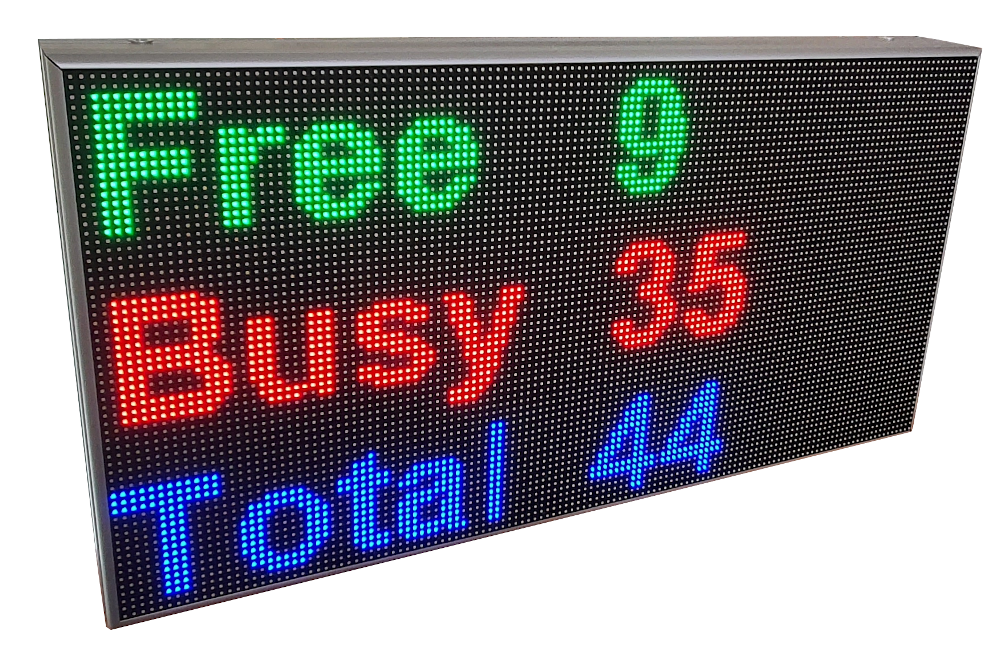

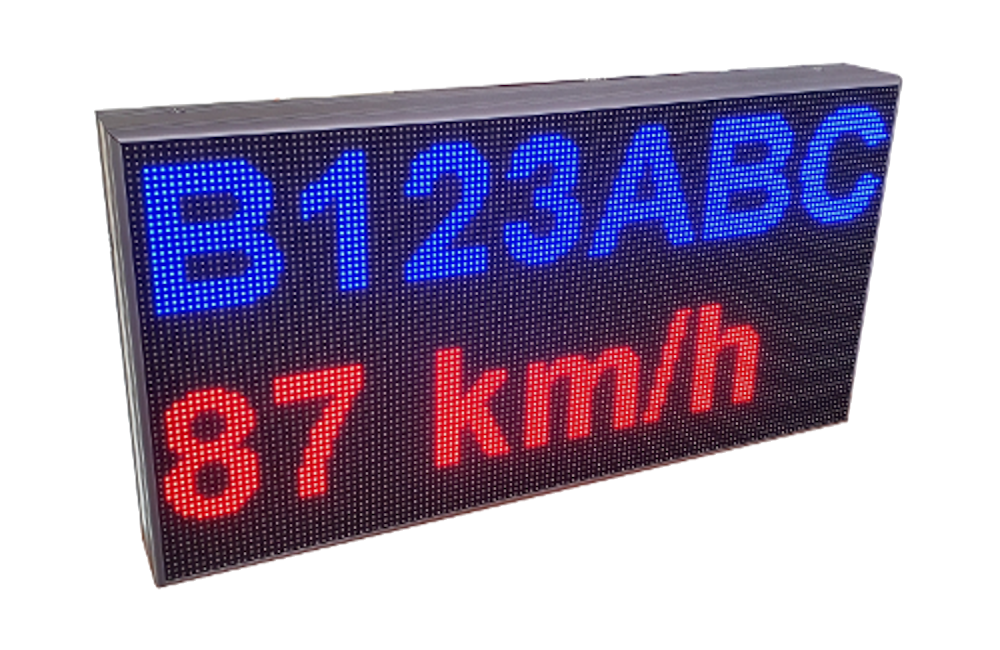

Large Format
Large LED Display
A full-format display at ~65 × 33 cm, 8 cm deep. Shows 1, 2 or 3 rows of text with up to 12 characters each. Used for road speed warnings, transport platforms, ferry crossing times, plate number readouts and more.
Size
~65 × 33 cm
Resolution
128 × 64 px
Text rows
1 – 3 rows
Characters
Up to 12 / row
Colour
Full RGB
Network
WiFi + Ethernet
Custom Dimensions
Any Size. Your Size.
The two standard formats are the starting point — Metrici can manufacture displays to any dimensions your project requires.
Scaled to Fit Any Installation
Standard dimensions are 64×32 px (~32×16 cm) and 128×64 px (~65×33 cm), but Metrici displays can be produced at any size. Panels can be combined in rows of 10 or more for wide-format signage, or stacked vertically for tall displays.
Whether you need a compact indicator at the end of a parking row, a roadside speed sign visible from 100 m, or a large information board at a port gate — the display is sized and configured to match.
Custom displays share the same aluminium housing, IP66 rating, full RGB capability, WiFi/Ethernet connectivity and web interface as the standard range. Content — text, numbers, arrows, images, other.
Small
~32 × 16 cm
64 × 32 px
3 chars / row
64 × 32 px
3 chars / row
Large
~65 × 33 cm
128 × 64 px
12 chars / row
128 × 64 px
12 chars / row
Custom
Any dimensions
Any resolution
Any content
Any resolution
Any content
Row of 10
~320 cm wide
Chained panels
Parking guidance
Chained panels
Parking guidance
Scenarios
Speed display
Radar-linked
Visible 100 m+
Radar-linked
Visible 100 m+
Functions
Multi-row text
Plate + platform
Large format
Plate + platform
Large format
Features
Built Tough. Connected Live.
Industrial-grade hardware that works with any Metrici data source, updated in real time from the Metrici Web Interface.
Live Data from Metrici
Displays any value the Metrici system produces — free spaces, weight, speed, plate numbers, custom text, directions — updated in real time.
Full RGB Colour
New generation display shows colour, text, numbers, arrows, images — all configurable from the web interface.
WiFi & Ethernet
Both connectivity options available. Connects to the Metrici database wirelessly or via wired network. No separate controller hardware needed.
IP66 Certified
Fully protected against dust and water. Rated for outdoor use in all weather conditions, including rain, humidity and direct sun exposure.
-20°C to +50°C
Industrial components rated for extreme temperatures. Works in harsh winter conditions and summer heat without performance degradation.
100,000+ Hour LED Life
Long-life LEDs mean years of maintenance-free operation. No replacements, no downtime, no ongoing hardware costs.
Direction Arrow
On the compact model, a direction arrow is configurable as position and orientation from the display’s own web interface.
Own Web Interface
Each display has its own web interface for local configuration — brightness, content, layout, networking — independent of the Metrici server.
Aluminium Housing
Robust anodised aluminium enclosure. Light, corrosion-resistant and designed for permanent outdoor mounting in any orientation.
Where to Use It
One Display. Many Scenarios.
Wherever a driver, worker or visitor needs real-time information at a glance.
Parking Free Spaces
Show available spaces per row or per section at the entrance. Updated live as vehicles enter and leave, fed by LPR or PPD interface.
Speed Warning Signs
Display a driver’s real-time speed on a public or private road when linked to Metrici Observer Radar. Effective at reducing excess speed.
Transport Platforms
Show truck plate numbers and assigned loading platforms at logistics depots and transport terminals. Eliminates confusion at busy facilities.
Weighing Stations
Display the weight reading from a weighbridge in real time. The driver sees the result without leaving the vehicle or entering an office.
Port & Ferry Guidance
Show waiting times, platform assignments or gate status at ports and ferry crossings. Large format display readable at distance.
Industrial Signage
Display production counts, alerts, or zone instructions inside factories. Connected to any Metrici counter or detection engine output.
Works With
Part of the Metrici Ecosystem
The LED Display connects natively with these Metrici products as a data source.
🔢
LPR Parking Module
Drive free-space counts and directional arrows in real time from Metrici’s parking Interface. The display updates automatically.
Learn more →📡
Metrici Observer Radar
Combine with the radar module to show live vehicle speed on public and private roads. Proven to reduce speeding in restricted areas.
Learn more →🅿️
Parking Place Detector
Use PPD to detect individual space occupancy and feed the count to the LED display at the row, zone, floor, total.
Learn more →
Get Started
The Right Number. Always Visible.
Rugged, full-colour LED displays that connect to your Metrici system and keep drivers and staff informed in real time.
✕
![]()
